What it does

Detects edges by convolving a grayscale version of the image with horizontal and vertical Sobel kernels, then combining their magnitudes.

Preview

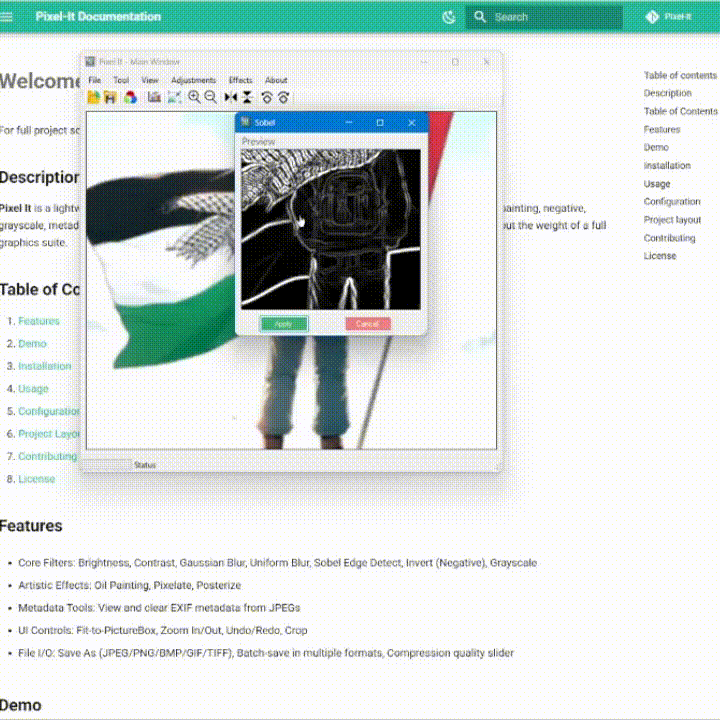

Sobel Preview
Sobel filter highlighting edges

Usage in Code

Sobel.cs
private int Clamp(int v) => Math.Max(0, Math.Min(255, v));

int[,] gx = { { -1,0,1 }, { -2,0,2 }, { -1,0,1 } };
int[,] gy = { {  1,2,1 }, {  0,0,0 }, { -1,-2,-1 } };

private Bitmap ApplySobelFilter(Bitmap sourceImage)
{
    int width = sourceImage.Width;
    int height = sourceImage.Height;
    Bitmap grayImage = new Bitmap(width, height);
    Bitmap edgeImage = new Bitmap(width, height);

    for (int x = 0; x < width; x++)
    for (int y = 0; y < height; y++)
    {
        Color px = sourceImage.GetPixel(x, y);
        int l = (px.R + px.G + px.B) / 3;
        grayImage.SetPixel(x, y, Color.FromArgb(px.A, l, l, l));
    }


    for (int x = 1; x < width - 1; x++)
    for (int y = 1; y < height - 1; y++)
    {
        int sumX = 0, sumY = 0;

        for (int ky = -1; ky <= 1; ky++)
        for (int kx = -1; kx <= 1; kx++)
        {
            int pixel = grayImage.GetPixel(x + kx, y + ky).R;
            sumX += gx[ky + 1, kx + 1] * pixel;
            sumY += gy[ky + 1, kx + 1] * pixel;
        }

        int g = (int)Math.Sqrt(sumX * sumX + sumY * sumY);
        g = Clamp(g);

        edgeImage.SetPixel(x, y, Color.FromArgb(255, g, g, g));
    }

    return edgeImage;
}

Sobel Filter

The Sobel filter is an edge detection technique used in image processing and computer vision. It works by calculating the gradient of the image intensity at each pixel, highlighting regions of high spatial frequency that correspond to edges. The filter uses convolution with two 3x3 kernels to detect horizontal and vertical changes in intensity.
