Gamma Correction

What it does

Adjusts each color channel non-linearly via a power-law (output = 255 × (input/255)^(1/γ)), brightening or darkening midtones without clipping highlights/shadows.

Preview

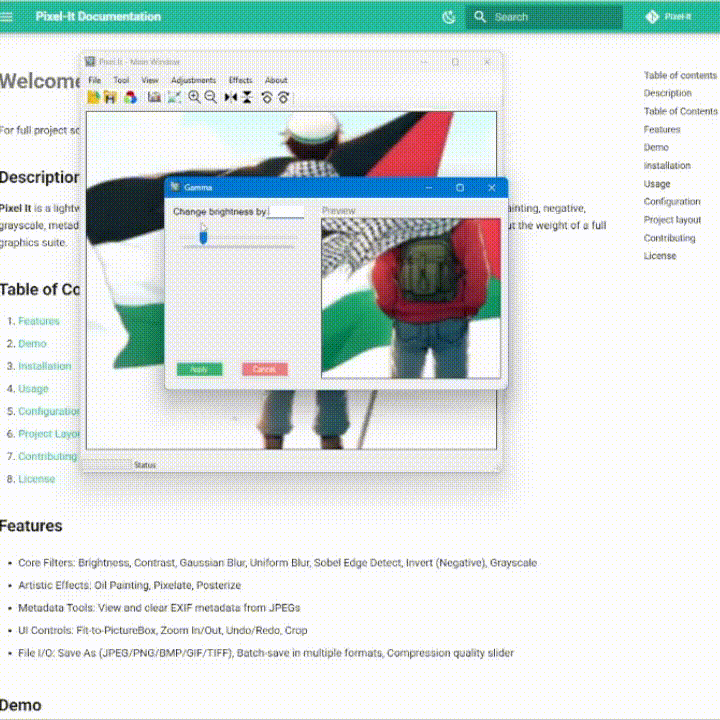

Gamma Preview
Gamma adjustments at γ=0.5 (brighter) and γ=2.0 (darker)

Usage in Code

Gamma.cs
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
private int Clamp(int v) => Math.Max(0, Math.Min(255, v));

private Bitmap ApplyGammaFilter(Bitmap sourceImage, double gamma)
{
    int width = sourceImage.Width;
    int height = sourceImage.Height;
    Bitmap newImage = new Bitmap(width, height);

    for (int x = 0; x < width; x++)
    {
        for (int y = 0; y < height; y++)
        {
            Color px = sourceImage.GetPixel(x, y);
            double r = Math.Pow(px.R / 255.0, 1.0 / gamma) * 255.0;
            double g = Math.Pow(px.G / 255.0, 1.0 / gamma) * 255.0;
            double b = Math.Pow(px.B / 255.0, 1.0 / gamma) * 255.0;

            Color newColor = Color.FromArgb(
                px.A,
                Clamp((int)r),
                Clamp((int)g),
                Clamp((int)b)
            );
            newImage.SetPixel(x, y, newColor);
        }
    }

    return newImage;
}

Gamma (photography)

In photography, gamma refers to the relationship between the input and output brightness levels of an image, often used to adjust the tonal range and contrast. A gamma correction modifies the brightness and contrast to compensate for the non-linear perception of light by human vision or display devices. Wiki

Created: 2025-06-28
Updated: 2025-06-28
